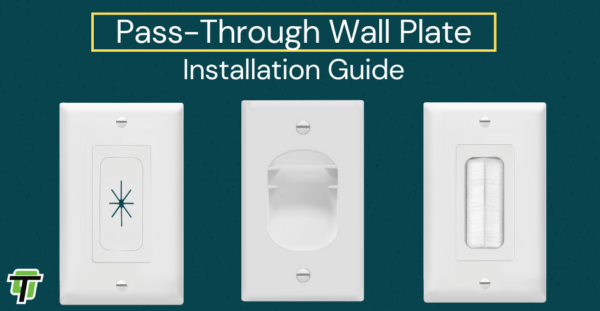

Topgreener offers several types of pass-through wall plates for your convenience. The different sizes and styles allow for a unique organization of your multimedia or datacom cables.
For instance, the TG8901 has a central opening for cables to be passed through, while the TG8891 bristle wall plate allows TV, ethernet, or phone cables to be stacked or separated by the bristles. Although the designs differ, installation is straightforward and the same across all versions.
Installing any of Topgreener’s datacom wall plates is easy. In the following guide, we will cover how to install 2x brackets and 2x pass-through wall plates to connect and conceal multimedia wiring between a television and a console. This is perfect for wires like HDMI, coaxial, or power cables. The finished look will conceal any evidence of wires behind the wall for a professional look.
Tools
Gather these tools to begin the quick and straightforward process: a screwdriver, a measuring tape, a pencil, a drywall saw, and a stud finder. Safety wear, such as protective gloves and goggles, is always highly recommended. A small torpedo level is optional.
Step 1
To begin, identify the area you want to mount the brackets.
Use a stud finder around the area to make sure you don’t cut wires, pipes, or any other structural elements behind the wall. It is important to only cut where the drywall is. Use a measuring tape to ensure the cords you’re threading through the brackets will meet.
Step 2
Next, use a pencil to trace the mounting brackets for a snug fit. A torpedo level can ensure the bracket is straight.
Step 3
Use the drywall saw to cut out the two traced guides you created.
Step 4
Insert the brackets into the wall spaces you cut out. Use a screwdriver to secure them.
Step 5
Pull the cables through. Make sure you hold the end so you don’t drop the cable behind the wall.
Step 6
Pull the cables through. Make sure you hold the end so you don’t drop the cable behind the wall.
Voila! Installation is complete in six easy steps. You’ve created a professional look for your media console. Stray wires don’t have to be an issue any longer with this easy solution to conceal them.
